Holter

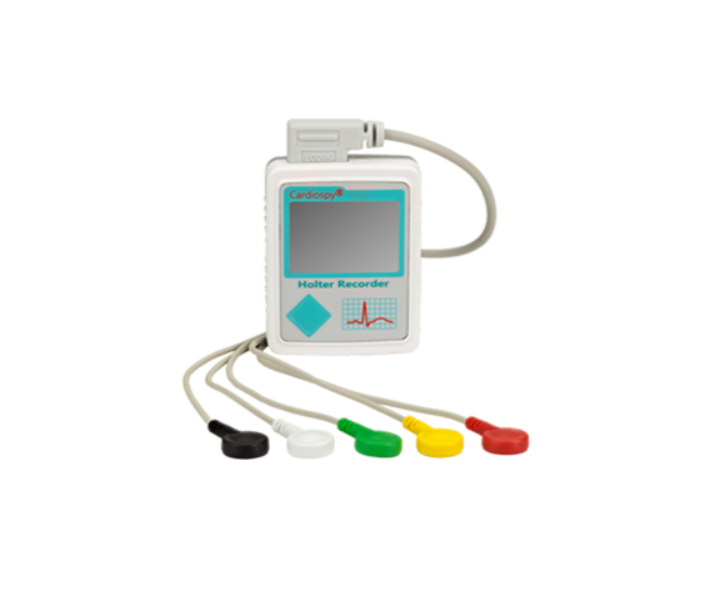

EC-2H Recorder

Features:

• Full-disclosure ambulatory ECG records
• 1and 2 independent channel
• Compact size, lightweight
• LCD display
• Wireless (bluetooth) communication with pc
• Independent pacemaker channel and analysis
• Patient event button
• 3D accelerometer for movement detection
• Effective noise, muscle and baseline filters
• Quick and effective automatic analysis
• Color coded graphs and tables
• HR and ST tren
• Various editing and printing functions
• Network and web-based usage possible

Technical Specifications :

• The battery can be changed during recording
• Recording duration maximum (with battery changing) - 336h
• Dynamic Bandwidth - ±20 mV
• DC Offset Range - ±600 mV
• Frequency Response maximum - 0.05 Hz … 150Hz
• Sampling Rate - 125 Hz, 250 Hz, 500 Hz, 1000 Hz
• Recording Rate -125 Hz, 250 Hz, 500 Hz, 1000 Hz
• Common Mode Rejection Ratio- 120dB
• A/D Resolution- 16 bit
• Input impedance >100 M
• Power Source - 1x1.2 V AAA NiMH rechargeable battery with a minimum capacity of 900 mAh
• (or 1x1.5 V AAA alkaline)
• Battery Life - min. 24 h, up to 48 h using a high-capacity battery
• Storage Card Capacity - built-in 2GB (microSD)
• Internal Voltage (max) - 3.3 V
• Display - LCD (Grey Scale 160x100 pixels)
• Movement detection 3D
• Patient Event button
• Monitoring ECG - On PC via Bluetooth and on LCD as well
• Reading Record - via USB cable
• International Protection Rating Against Water: IPX0
• Size- 53 x 67.5 x 18.5 mm
• Weight ~ 50 g

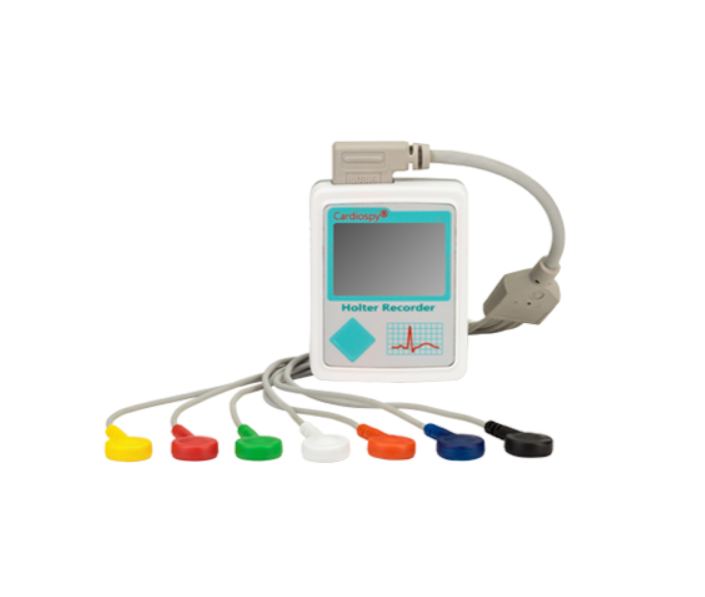

EC-3H Recorder

Features :

• Full-disclosure ambulatory ecg records
• 1, 2, 3 independent channel
• Compact size, lightweight
• LCD display
• Wireless (bluetooth) communication with pc
• Independent pacemaker channel and analysis
• Patient event button
• 3D accelerometer for movement detection
• Effective noise, muscle and baseline filters
• Quick and effective automatic analysis
• Color coded graphs and tables
• HR and ST trends
• Calculates ST, QT, AF, HRV, HRT, Micro V-TWA
• Various editing and printing functions
• Network and web-based usage possible

Technical Specifications :

• The battery can be changed during recording
• Recording duration maximum (with battery changing) - 336h
• Dynamic Bandwidth - ±20 mV
• DC Offset Range - ±600 mV
• Frequency Response maximum - 0.05 Hz … 150Hz
• Sampling Rate - 125 Hz, 250 Hz, 500 Hz, 1000 Hz
• Recording Rate -125 Hz, 250 Hz, 500 Hz, 1000 Hz
• Common Mode Rejection Ratio- 120dB
• A/D Resolution- 16 bit
• Input impedance >100 M
• Power Source - 1x1.2 V AAA NiMH rechargeable battery with a minimum capacity of 900 mAh
• (or 1x1.5 V AAA alkaline)
• Battery Life - min. 24 h, up to 48 h using a high-capacity battery
• Storage Card Capacity - built-in 2GB (microSD)
• Internal Voltage (max) - 3.3 V
• Display - LCD (Grey Scale 160x100 pixels)
• Movement detection 3D
• Patient Event button
• Monitoring ECG - On PC via Bluetooth and on LCD as well
• Reading Record - via USB cable
• International Protection Rating Against Water: IPX0
• Size- 53 x 67.5 x 18.5 mm
• Weight ~ 50 g

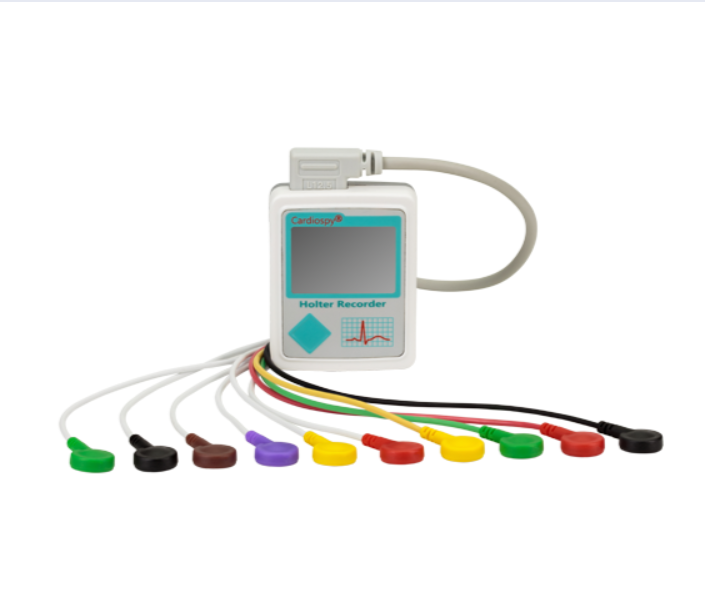

EC 12H Recorder

Features :

• Full-disclosure ambulatory ecg records
• 1, 2, 3 independent-, or 12 channels
• Compact size, lightweight,
• LCD display
• Wireless (bluetooth) communication with pc
• Independent pacemaker channel and analysis
• Patient event button
• 3D accelerometer for movement detection
• Effective noise, muscle and baseline filters
• Quick and effective automatic analysis
• Color coded graphs and tables
• HR and ST trends
• Calculates ST, QT, AF, HRV, HRT, Micro V-TWA
• Various editing and printing functions
• Network and web-based usage possible

Technical Specifications :

• The battery can be changed during recording
• Recording duration maximum (with battery changing) - 336h
• Dynamic Bandwidth - ±20 mV
• DC Offset Range - ±600 mV
• Frequency Response maximum - 0.05 Hz … 150Hz
• Sampling Rate - 125 Hz, 250 Hz, 500 Hz, 1000 Hz
• Recording Rate -125 Hz, 250 Hz, 500 Hz, 1000 Hz
• Common Mode Rejection Ratio- 120dB
• A/D Resolution- 16 bit
• Input impedance >100 M
• Power Source - 1x1.2 V AAA NiMH rechargeable battery with a minimum capacity of 900 mAh
• (or 1x1.5 V AAA alkaline)
• Battery Life - min. 24 h, up to 48 h using a high-capacity battery
• Storage Card Capacity - built-in 2GB (microSD)
• Internal Voltage (max) - 3.3 V
• Display - LCD (Grey Scale 160x100 pixels)
• Movement detection 3D
• Patient Event button
• Monitoring ECG - On PC via Bluetooth and on LCD as well
• Reading Record - via USB cable
• International Protection Rating Against Water: IPX0
• Size- 53 x 67.5 x 18.5 mm
• Weight ~ 50 g
